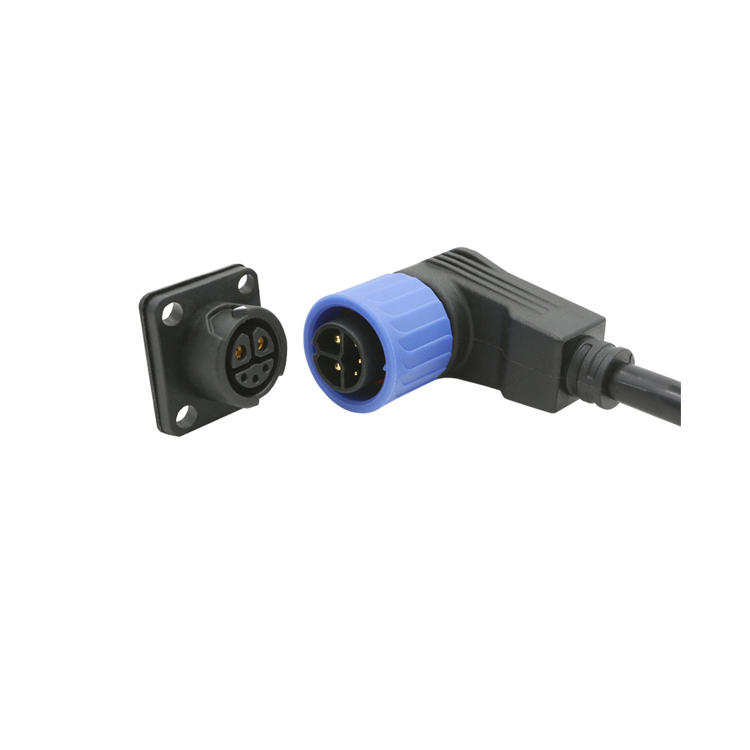

Middle 2+3 Pin (20A)

应用范围:为电动自行车/电动摩托车充放电提供电气连接

规格参数相关产品

Mating Cycle:≥500 Cycles

Voltage Rating:300V DC

Operating Temperature-40°C to 105°C

Pullout Force<100N

Current Rating20A + 5A

IP RatingIP67 Mated

Wire ProcessingSolder

Withstand Voltage2,000V AC

Salt Spray:5% Nacl, 48H

Wire Gauge
Power
14AWG/ Max
Signal 20AWG/ Max

Insulation  Resistance:>100MΩ at DC 500V

Flammability Rating:

UL94V-HB (Plastic Material) / Plug Side

UL94V-0 (Plastic Material) /  Panel Side
