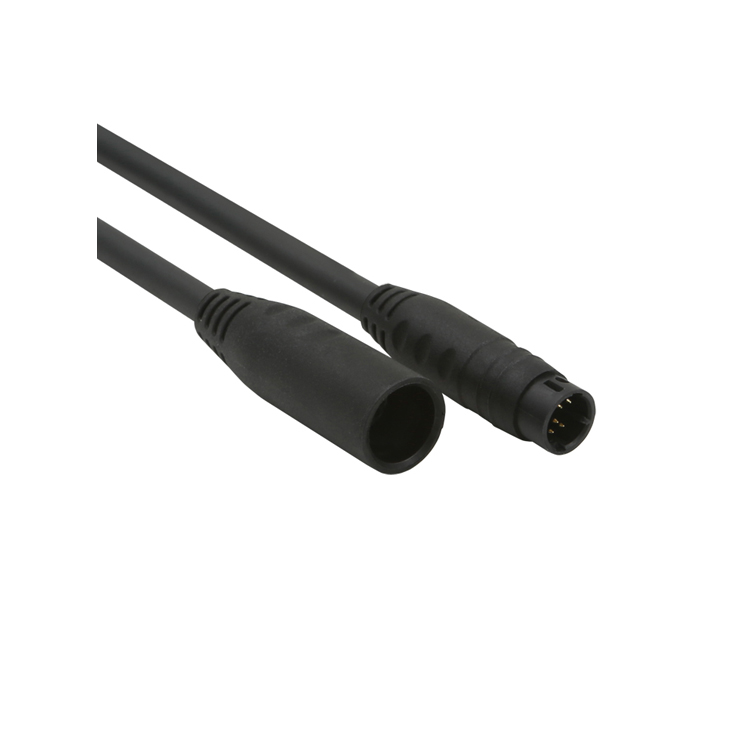

Dream 11 Pin (1.5A)

应用范围:各种工况下的信息连接器

规格参数相关产品

Mating Cycle:≥200 Cycles

Voltage Rating:48V AC / 60V DC

Operating  Temperature:-25°C to 85°C

Pullout Force:30-100N

Current Rating:2A

IP Rating:IP67 Mated

Wire Processing:Solder

Withstand Voltage:250V AC

Salt Spray:5% Nacl, 48H

Wire Gauge:26AWG/ Max

Insulation Resistance:>20MΩ at DC 250V

Flammability Rating:UL94 V-0 (Plastic Material)
