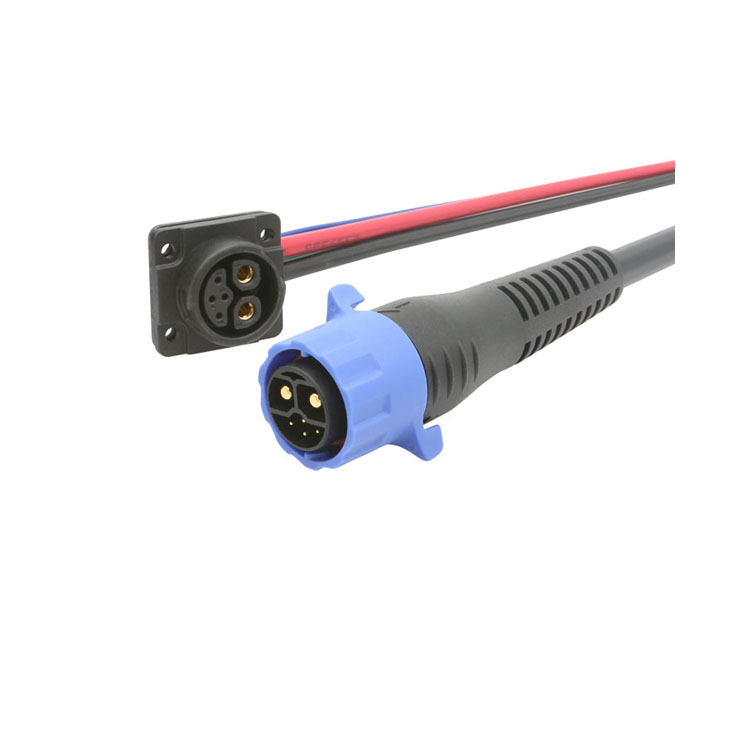

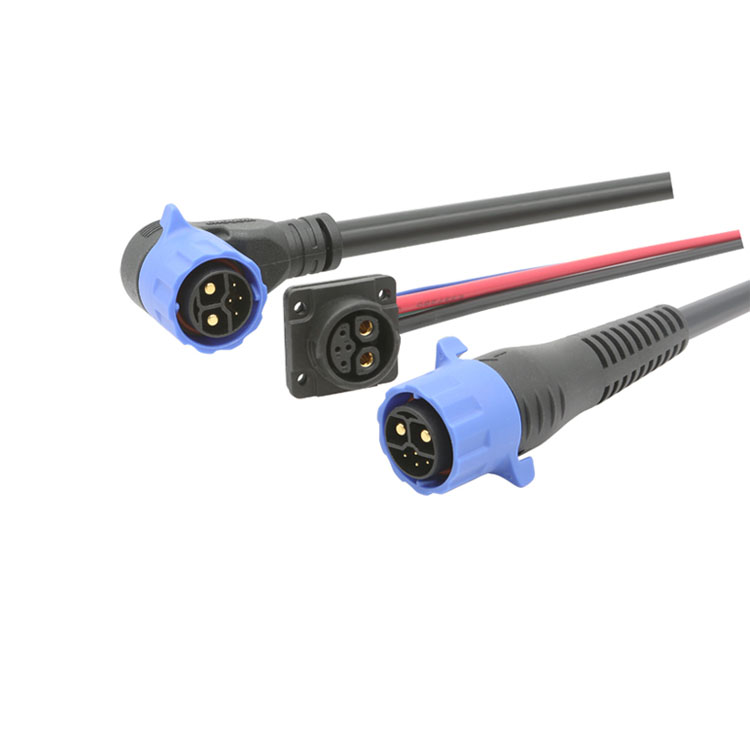

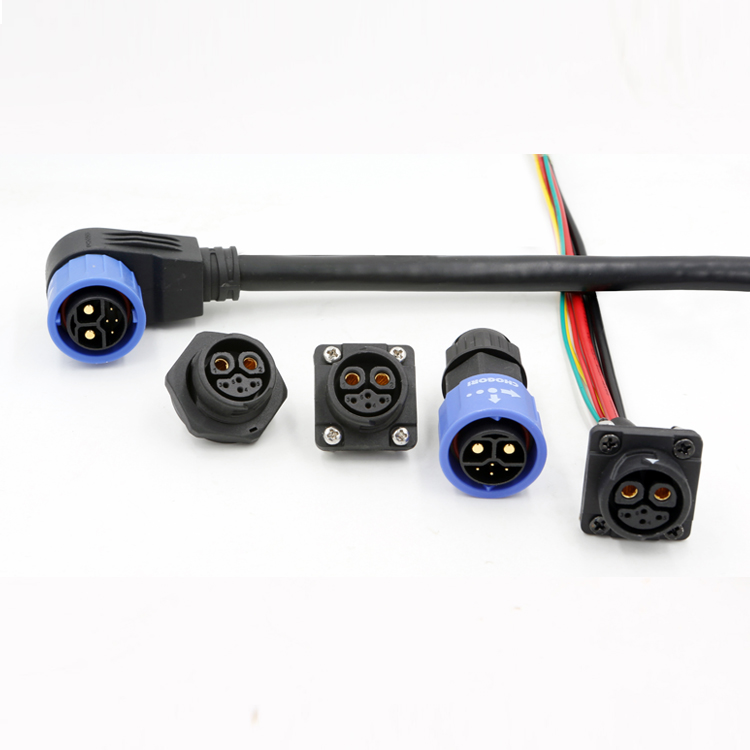

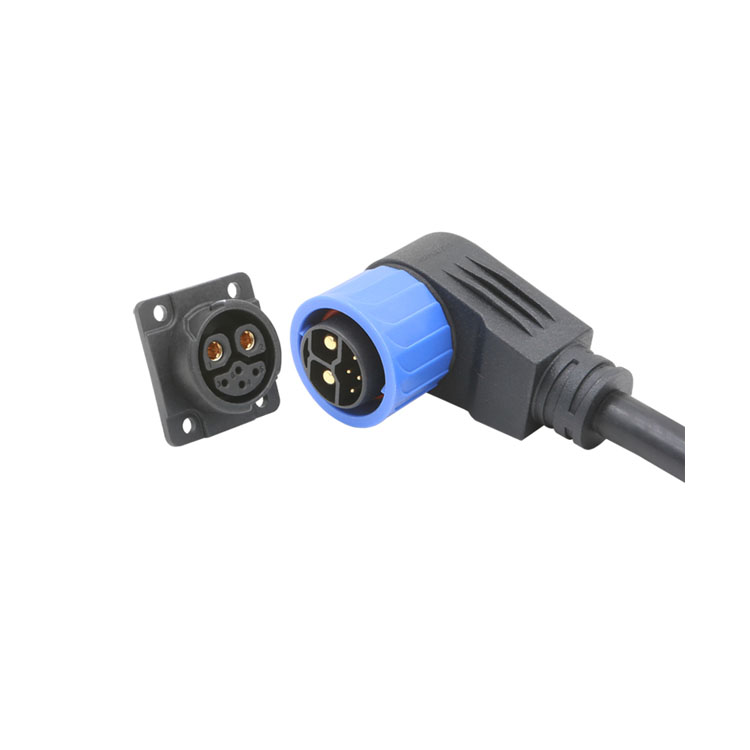

Large 2+4 Pin (50A+5A)

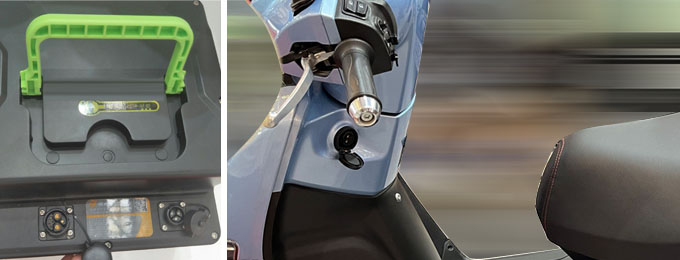

应用范围:为电动摩托车充放电提供电气连接

规格参数相关产品

Mating Cycle:≥3,000 Cycles

Voltage Rating:80V DC

Operating  Temperature:-40°C to 105°C

Pullout Force:<100N

Current Rating:50A + 5A

IP Rating:IP67 Mated

Wire Processing:Solder

Withstand Voltage:1,500V AC

Salt Spray:5% Nacl, 48H

Wire Gauge:Power 9AWG/ Max

                      Signal 20AWG/ Max

Insulation Resistance:>100MΩ at DC 500V

Flammability Rating:
UL94V-HB (Plastic Material) / Plug Side
UL94V-0 (Plastic Material) / Panel Side
